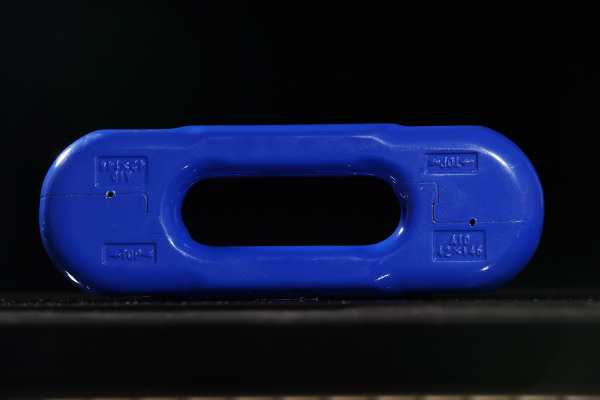

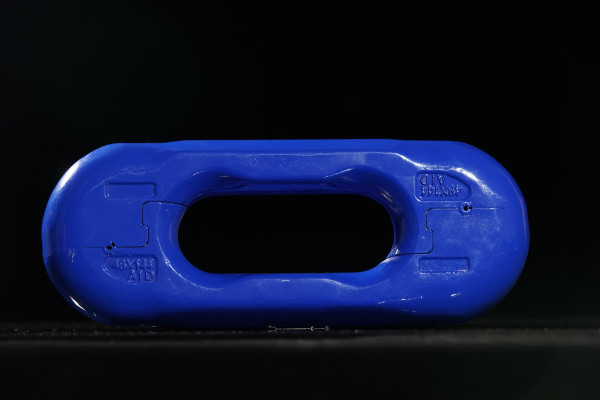

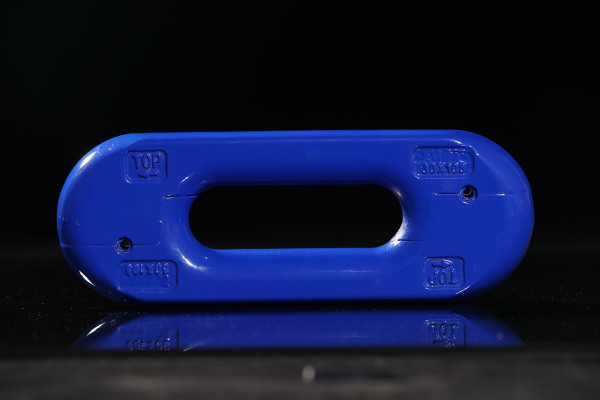

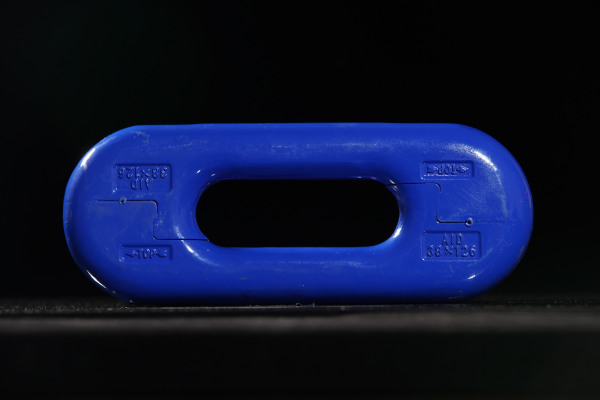

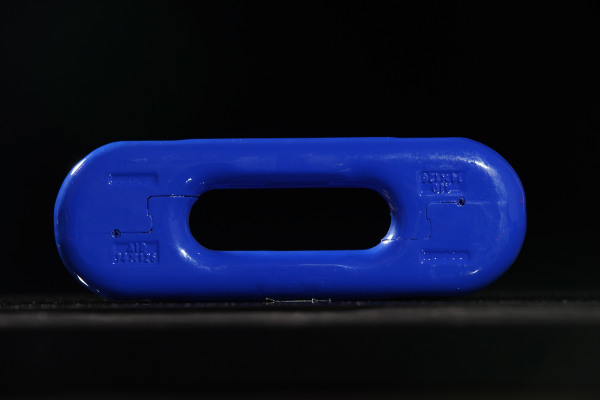

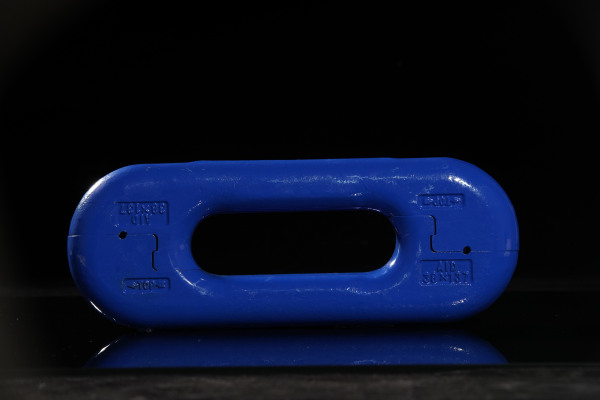

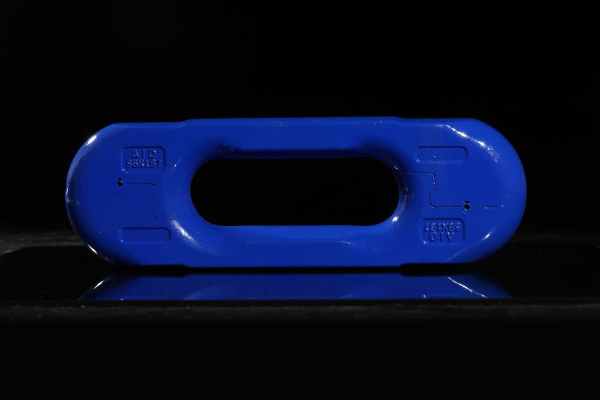

V-lock vertical connecting link

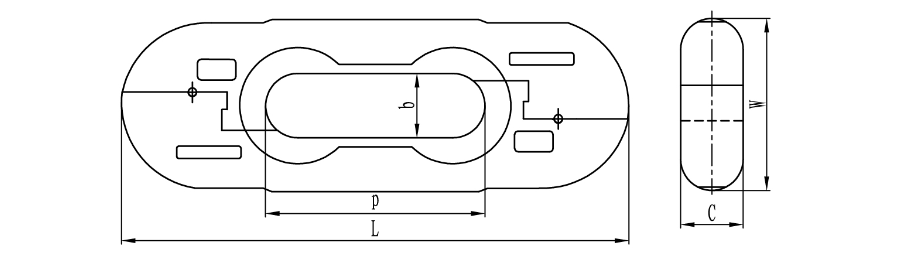

Dimensions and properties
Specification
d×p
d
P
(mm)
L
max
b
min
B
max
C
max
Minimum breaking load (KN)
Minimum number of cycles (times)
26×92
26±0.8
92±0.9
28
75
28
213
970
70000
30×108
30±0.9
108±1.1
32
87
32
241
1300
34×126
34±1.0
126±1.3
37
99
36
297
1700
38×126
38±1.1
126±1.3
41
111
40
290
1900
38×137
38±1.1
137±1.4
41
111
40
322
1900
42×146
42±1.3
146±1.5
45
115
46
341
2300
48×144
48±1.5
144±1.6
51
127
56
334
3150
48×152
48±1.5
152±1.6
51
127
56
342
3150
52×170
52±1.6
170±1.8
56
127
61
388
3600
56×187
56±1.7
187±1.8
60
131
65
411
4300
(mm)
