mining clamp

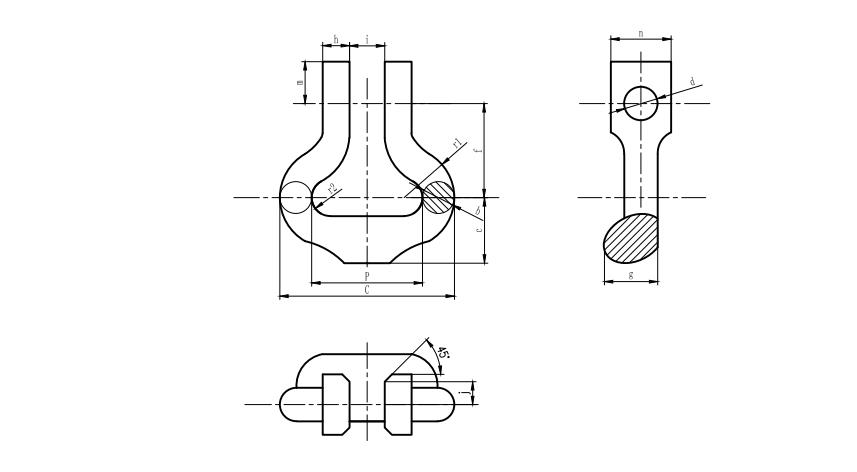

Dimensions and properties
|
Specification d×p |
b |
P (mm) |
c max |
d (mm) |
j (mm)
|
f max |
h (mm) |
i (mm) |
n (mm) |
r1 max |
r2 (mm) |
m (mm) |
Minimum breaking load (KN) |
Minimum number of cycles (times) |
|||
|
Long leg max |
Short leg max |
Class B |
Class C |
Class B |
Class C |
||||||||||||
|
14×50 |
16±0.5 |
50±0.5 |
81 |
17±0.5 |
- |
50±1 |
14.5+2 |
16+2 |
29-1.5 |
24 |
8+0.5 |
- |
16 |
170 |
225 |
25000 |
40000 |
|
18×64 |
20±0.5 |
64±0.6 |
103 |
21±0.5 |
- |
56±1 |
16+2 |
21+2 |
36-1.5 |
30 |
11+0.5 |
41 |
25 |
290 |
370 |
||
|
22×86 |
23±1 |
86±1 |
134 |
25±0.5 |
17 |
75±1 |
21+2 |
24.5+2 |
52-1.5 |
37 |
13+0.5 |
45 |
- |
- |
550 |
- |
|
|
24×86 |
25±1 |
86±1 |
138 |
25±0.5 |
17 |
78±1 |
23+2 |
27+2 |
52-1.5 |
39 |
14+0.5 |
46 |
24 |
- |
650 |
||
|
26×92 |
27±1 |
92±1 |
148 |
28±0.5 |
17 |
85±1 |
25+2 |
28.5+2 |
58-1.5 |
43 |
15+0.5 |
45 |
- |
- |
760 |
||
