chain-lock horizontal connecting link

Current location: Home page >>Product >>Link >>chain-lock horizontal connecting link

chain-lock horizontal connecting link
Scope of application: Drilling coal mines
Way of installation: Horizontal installation
Material: 23MnNiMoCr54 superior alloy steel
Production process: differential heating treatment process
Production standard: Q/AID01-2013 Technical Specifications for Mining Horizontal Connecting Links(better than DIN22258)
Contact information: +86-18663893777
Contact address: No. 36, Shenzhen street, industrial park, Haiyang City, Shandong Province

Product details

Inquiry

The chain-lock horizontal connecting link mainly refers to the connecting link among the scraper chains of heavy-duty and super-heavy scraper conveyors in coal mines. It is developed and produced in strict accordance with the provisions of Q/AID01-2013 Technical Specifications for Mining Horizontal Connecting Links, which is of advanced processing technology and high precision.
This product is characterized by certain advanced nature and use reliability, and its strength and fatigue life are close to the level of connecting links with the same structure in the world. Its main technical properties are listed as follows:
◆ Advanced structure, reliable connection, easy assembly and disassembly;
◆ It can be used for the connection among mining round link chains and closing of the mining high-strength compact chain specified in MT/T929 for scraper conveyors, which can only be horizontally used;
◆ Select high-alloy steel rich in manganese, nickel, molybdenum, chromium and other elements as raw material, design meticulously and use precision machining , the original “differential heating treatment” process is adopted realizing better tensile properties and longer fatigue life of connecting links.
The main dimensions and breaking force of the product are as follows

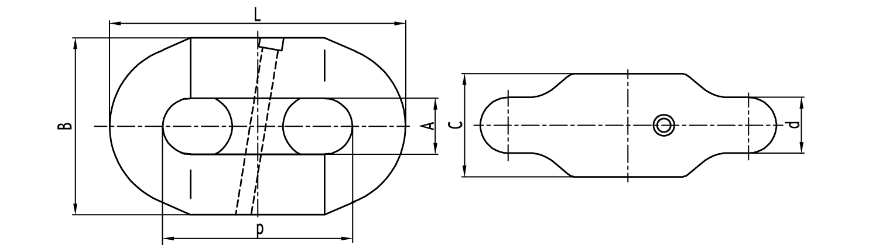

Dimensions

Table of dimensions and performance parameters

Specification d×p	d (mm)	P (mm)	L max	b min	B max	C Max	Minimum breaking load (KN)	Minimum number of cycles (times)
26×92	26±0.8	92±0.9	30	95	65	148	1050	80000
30×108	30±0.9	108±1.1	35	109	75	170	1400
34×126	34±1.0	126±1.3	36	120	85	196	1800
38×126	38±1.1	126±1.3	43	134	94	204	2220
38×137	38±1.1	137±1.4	43	134	94	215	2220
42×146	42±1.3	146±1.5	47	148	105	232	2700
48×152	48±1.5	152±1.5	54	170	118	249	3550
